We observed that our inhouse servers, running splunk were not working properly. Some performance issues and throttling were observed. To understand why this was happening we onboarded different types of logs and monitored various parameters. Maintaining proper temperature and humidity levels of server room is also an important factor that can influence its performance. This post will guide you through on how to get actuator’s Temperature and Humidity sensor data into splunk using hec into the Splunk.

Hardware Requirements:
  1. DHT11 Module: Temperature and Humidity sensor
  2. NodeMCU:  WIFI module devkit
  3. Jumper wires
Technology Requirements:
  1. Splunk
  2. Arduino IDE
What is HTTP POST request method?
POST is a request method supported by HTTP used by the World Wide Web. By design, the POST request method requests that a web server accepts the data enclosed in the body of the request message, most likely for storing it. It is often used when uploading a file or when submitting a completed web form. The header field in the POST request usually indicates the message body’s Internet media type and other parameters used like authentication.
What is HEC?
HTTP Event Collector or HEC is a built-in feature of Splunk with developers in mind. HEC is a token-based HTTP server where developers can POST the data/logs to be indexed.
Flow Diagram:
Part 1: HEC Setup on Splunk:
This part contains steps to set-up HEC in Splunk.

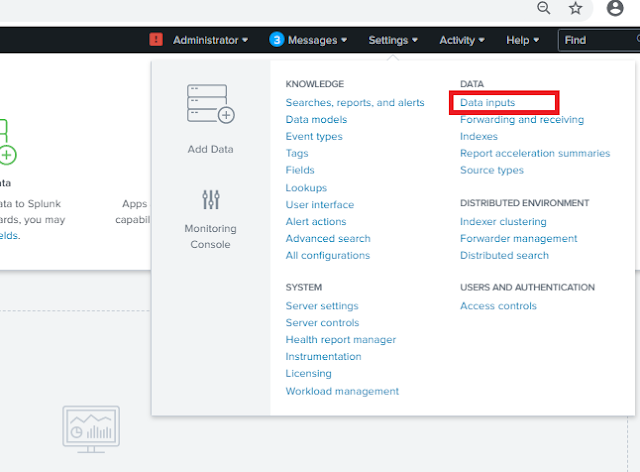

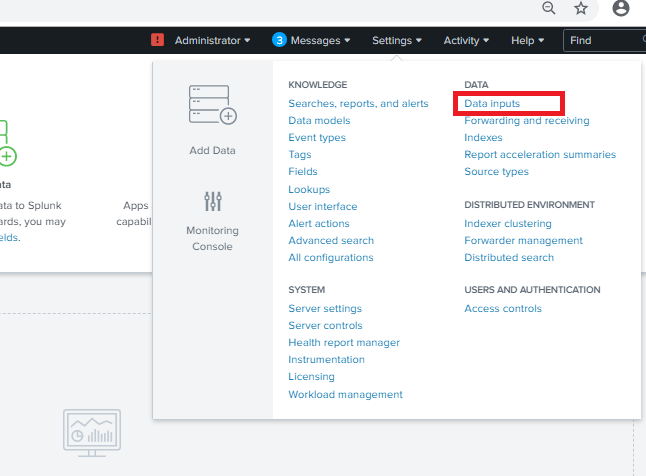

1) Click on settings and select data inputs
2) Select HTTP Event Collector option in local inputs

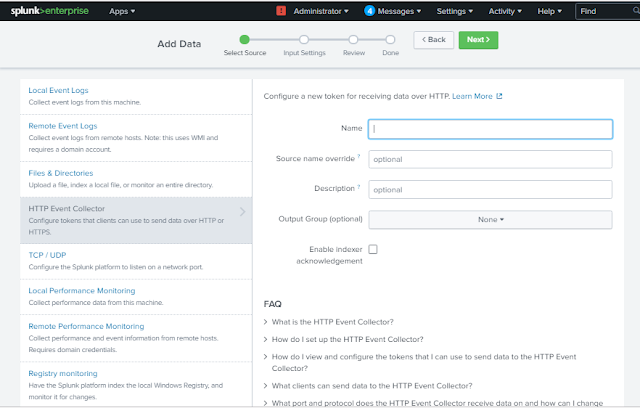

3) Generate “New Token” by clicking on new token button
sensor data into splunk using hec
4) Fill the desired options and click on next

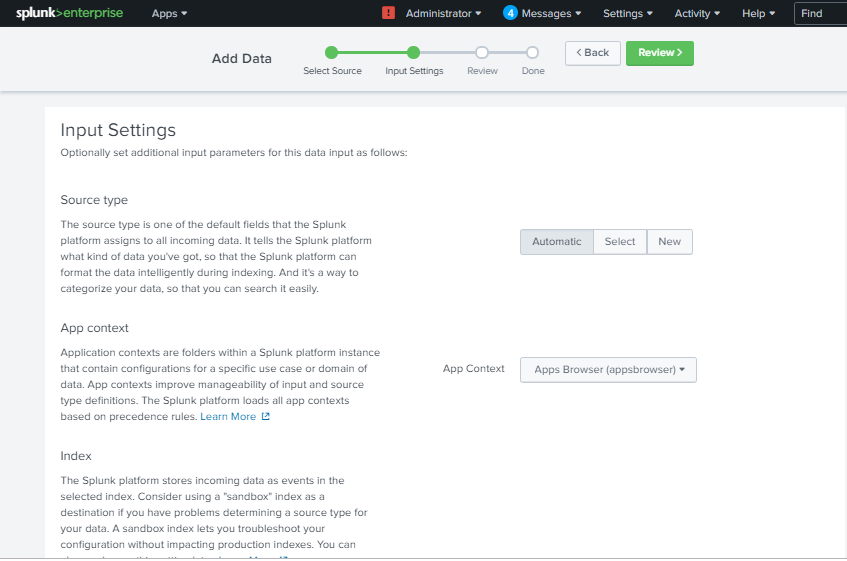

5) Configure input settings

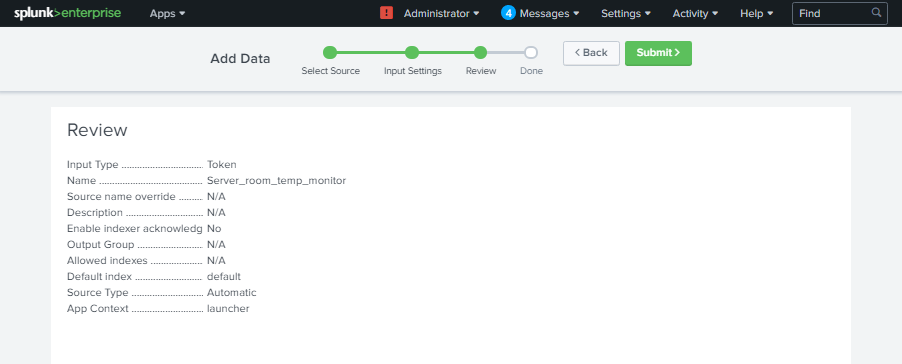

6) Review all configuration

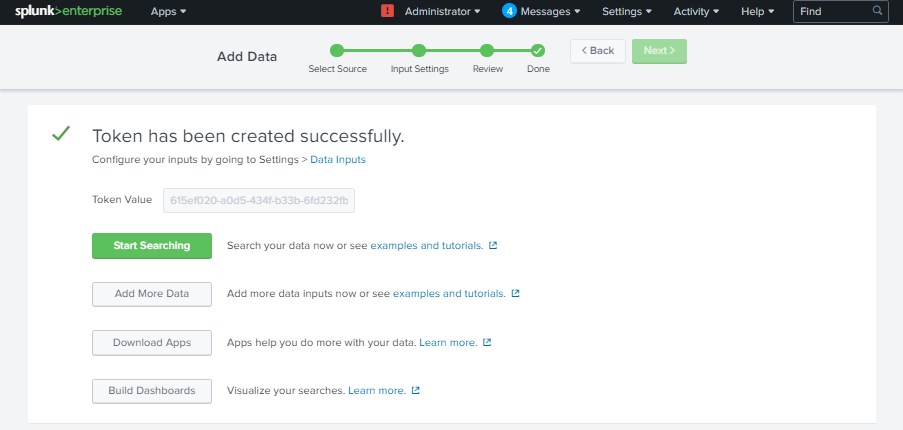

7) Congratulations! Your HEC is configured and token is generated successfully.

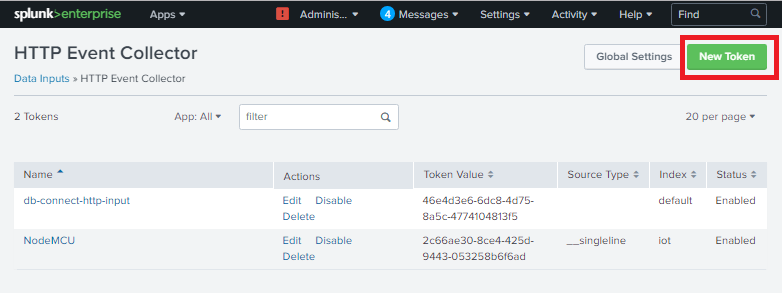

8) You can get the list of  HECs in Settings ➡ Data Inputs ➡ HTTP Event Collector
PART 2 : Working with IC and Sensors:
This part contains the steps to interface the sensor and NodeMCU and POST data in Splunk.

💽 Hardware Interfacing:
Using Jumper wires connect:
NODEMCU
DHT11
Vcc
Vcc
GND
GND
D1
Data Pin


Code:

How the Code Works:
Take a quick look at the code and see how it works.
First include all the necessary libraries. You include different libraries depending on the board you’re using, Functionalities and actuators interfacing.
  • #include <ESP8266WiFi.h>
    #include <ESP8266HTTPClient.h>
    #include “DHT.h”
The following is used to communicate with the actuator DHT11 on GPIO5 i.e. D1.
  • #define DHTPIN 5
    #define DHTTYPE DHT11
    float t,h;
    DHT dht(DHTPIN, DHTTYPE);
Connect to WiFi.
  • WiFi.begin(“xxxx“, “xxxx“);                //WiFi connection
    while (WiFi.status() != WL_CONNECTED) {          //Wait for the WiFI connection completion
    delay(500);
    Serial.println(“Waiting for connection”);
    }
Read Sensor Value and check Wifi connection status
  • h = dht.readHumidity();
    t = dht.readTemperature();if(WiFi.status()== WL_CONNECTED){ //Check WiFi connection status
    <HEC is done here>
    }
HTTP post request:

Destination URL: This is where you’ll need to send the post request to. This is the URL/IP address where your splunk is hosted with default port 8088 and followed by /services/collector. It should look something like this: http://:8088/services/collector
Authorization code: Authorization code is the token that we got from Splunk after HEC setup. This needs to be placed in header.
Content type: It is the type of the content/data/body that we’re sending.
Data: Here the data is given in post variable. This is the actual data that is to be indexed in splunk.
For JSON setup (in Splunk) the data should be in event JSON object like here it is:
{“event”:{“Key”:Value}}
Here the red colored part is your data.

  • void HEC(){HTTPClient http; //Declare object of class HTTPClient
    temp=DHT
    http.begin(“http://<YoutIPAddress/URL>:8088/services/collector”); //Specify request destination
    http.addHeader(“Content-Type”, “text/plain”); //Specify content-type header
    http.addHeader(“Authorization”, “Splunk xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx”);
    String post=”{“event”:{“Temperature”:”+String(t)+”,”Humidity”:”+String(h)+”}}”;
    Serial.println(post);
    int httpCode = http.POST(post); //Send the request
    String payload = http.getString(); //Get the response payload

    Serial.println(httpCode); //Print HTTP return code
    Serial.println(payload); //Print request response payload

    http.end(); //Close connection
    }

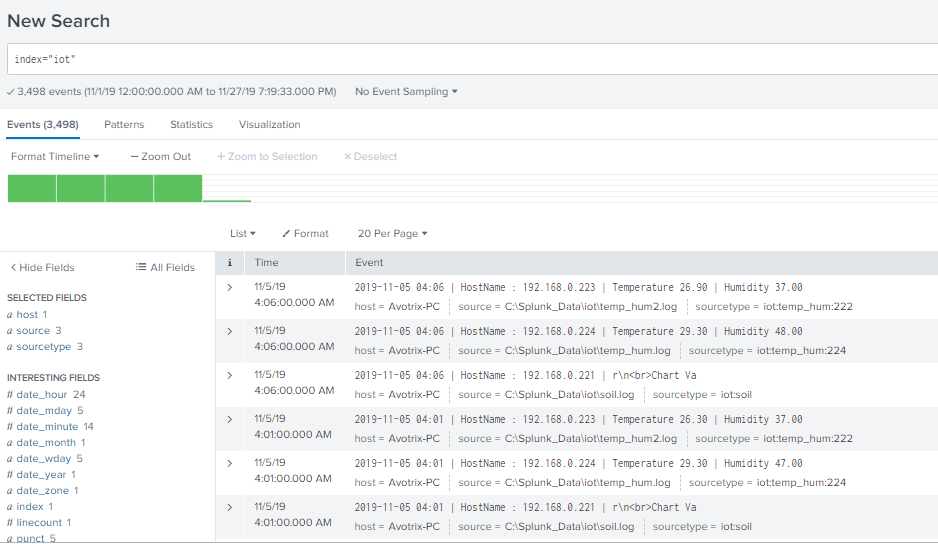

Part 3 : Visualization:

⚠️ Alert –
📋 Report –

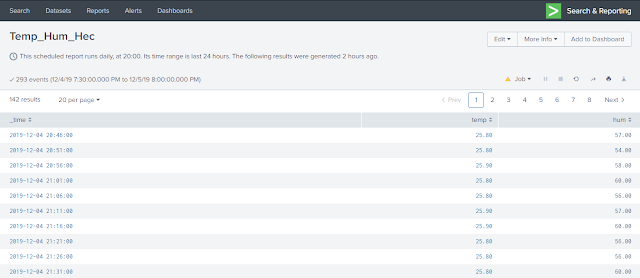

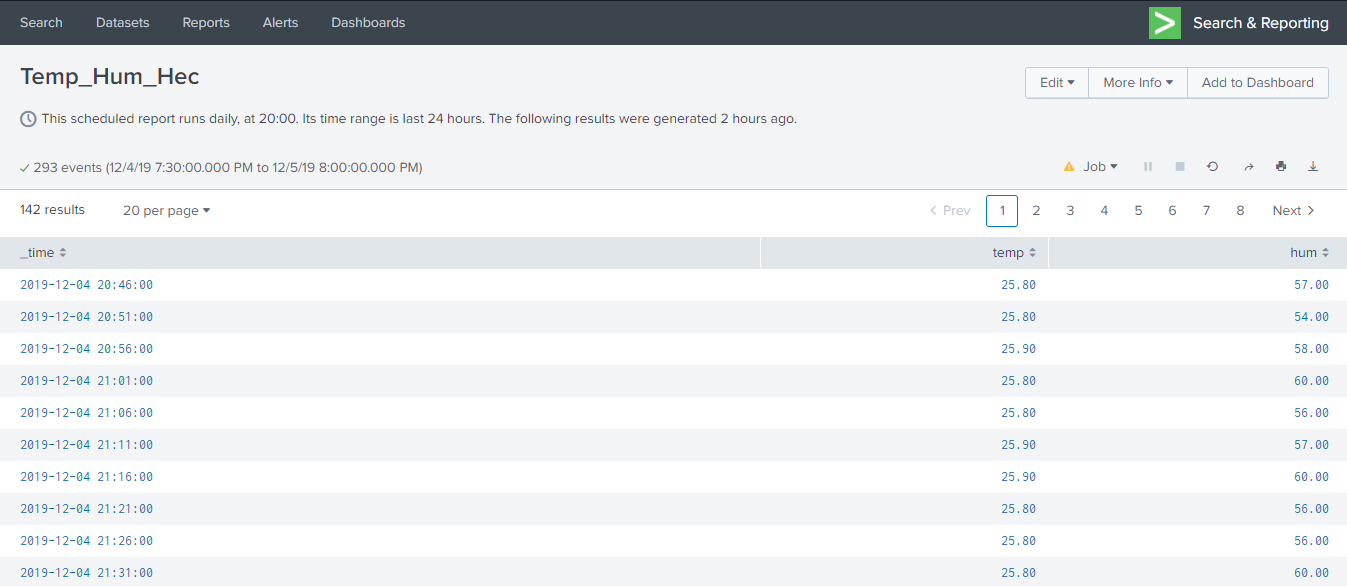

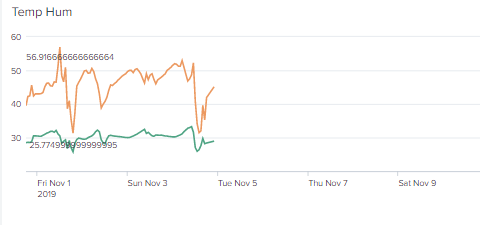

📊 Dashboard –
If you are still facing issue regarding sensor data into splunk using hec Feel free to Ask Doubts in the Comment Box Below and Don’t Forget to Follow us on 👍 Social Networks, happy Splunking >😉
