Our goal here is to create an Alert when an unauthorized user tries to log in. This will generate a user logon alert in Splunk if someone with the wrong credentials tries to login into your windows PC.

Procedure :

  • We are going to install Splunk universal forwarder (package) into remote windows PC (PC1)
  • Collect windows event logs on PC1
  • Forward those Logs from PC1 to PC2, where we are going to index the data on Splunk Indexer
  • And in PC2 Splunk instance we are going to create Alert

Configuring Splunk Universal Forwarder:-

Host Name: ACi25N
To collect Windows Events Logs, add the below inputs.conf file into Universal Forwarder (PC1) or just create one with the following stanza.
(Path :-  $Splunk_Directory$Splunketcsystemlocal)

Now, to forward this data to PC2 add or create outputs.conf into Universal Forwarder (PC1) with the following Stanza.
(Path: – $Splunk_Directory$Splunketcsystemlocal)

Configuring Splunk Indexer:-

Host Name: ACI3NEWP
To receive data coming from Forwarder add or create inputs.conf into Splunk Indexer with the following Stanza.
(Path:-  $Splunk_Directory$Splunketcsystemlocal)

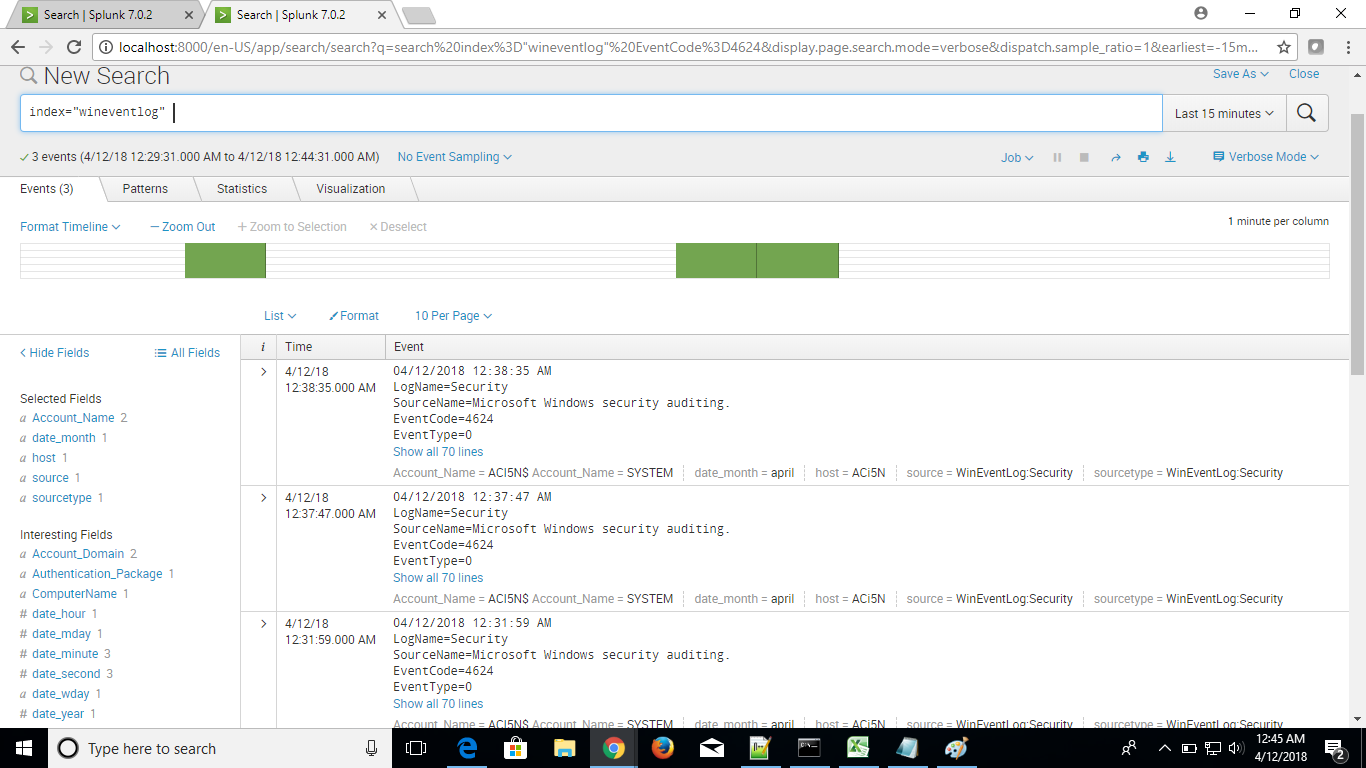

Open Splunk Indexer instance to check whether data is actually being indexed into indexer or not.
Query: index=”wineventlog”

Now create a lookup file with Fields Host_Name and User_Name which only have values of PC1 and PC2.
A lookup file with user’s details authorized to use respective host
Query: |inputlookup logon

Now run following query on which we are going to create alert:
Index=”wineventlog”Account_Name!=”$”|eval temp=mvindex(Account_Name,-1)|lookup logon Host_Name as ComputerName|eval Status=if(temp=User_Name,”1”,”0”)|table ComputerName temp User_Name Status

Saved the result as Alert
